General discription
      Silicon carbide is a resistance type heating element.and made from high density  reaction-bonded silicon carbide  or high purity recrystallized silicon carbide , that are extruded in the form of rods or tubes, before being bonded together by a process of re  crystallization, at temperatures of over 2500°C (4530°F). The firing process ensures the creation of rods with strong uniform bonds between adjacent grains, and the particle size distribution is closely controlled to ensure optimum density and resistance to the process atmosphere.
       Heating elements for element temperatures up to 1625°C (2927°F), available in a wide variety of standard sizes and geometries, or in customized designs to meet the specific needs of various processes and equipment. heating elements are capable of high power output, and may be mounted either vertically or horizontally.  no special supports are required

    Grade 1 QS1

     SiC heating Elements suitable for most applications in which silicon carbide elements are used. heating elements feature hot zones of high purity recrystallized silicon carbide, optimized for resistance to oxidation and common process gases. Available in rod or multi-leg designs. high density -- approximately 2.52 g/cm3  or 2.7g/cm3 to 2.8 g/cm3.This gives the Starbar very slow aging characteristics and high strength
     Grade2 QS2

      SiC heating elements designed for the most challenging applications where conventional silicon carbide elements are unsuitable.  SiC heating elements feature hot zones of high density, low permeability, reaction-bonded silicon carbide, which is highly resistant to oxidation, and to chemical attack by process volatiles and reactive atmospheres. At 2.7 g/cm3, this high-density low-porosity element  has an extremely slow aging characteristic..

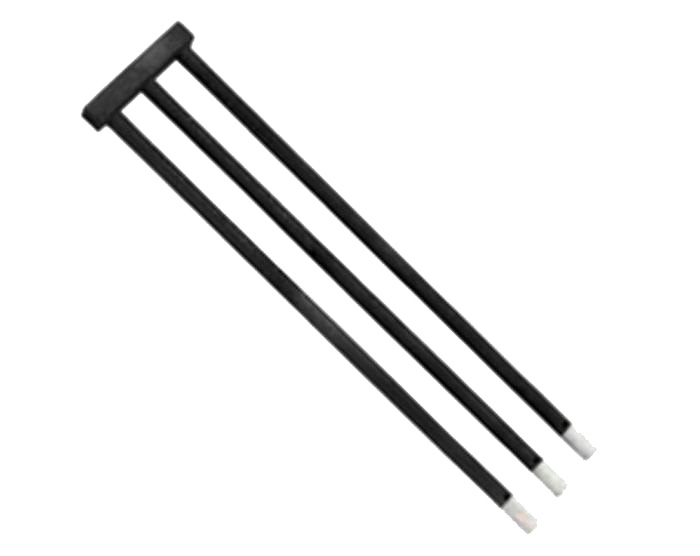

        QS W TYPE float glass heating elements performers in float glass production,W TYPE heating elements are comprised of high purity, high density, silicon carbide grains, self bonded through recrystallization at elevated temperatures. Sintering at temperatures in excess of 2200ºC provides a structural density of 2.7grams per cubic centimeter. Such high structural density results in elements of maximum strength and minimum porosity, with an extremely slow aging characteristic.
        Strength of the elements is further enhanced by insertion of hot zones into oversized cold ends. .cold end is manufactured of high resistance Alpha silicon carbide impregnated with silicon metal. It increases in resistance with an increase in temperature  Silicon carbide heating elements designed to be utilized in float baths for the manufacture of soda-lime flat glass for architectural, automotive and solar-glass applications. TYPE W float glass elements have recorded campaign lengths up to 18 years.

Physical  properties

OPERATING TEMPERATURES

     For atmospheres containing water vapor, alkali metal vapors, flux vapors, or oxygen enrichment, we recommend the use of QS3 glaze coated elements
Glazes and coatings
      Special glazes and surface treatments have been developed which can extend element life in various operating conditions, particularly where chemical attack is a problem. Details of these will be provided on request.
      QS offers a special coating for certain severe atmosphere applications.

       QS1  Coating

        This coating consists of a complex silicate glass specially formulated to provide a high degree of protection against chemical attack in atmospheres containing water vapor, alkaline metal vapors, flux vapors and in applications that utilize oxygen enrichment, including; non-ferrous metal melting and holding, glass melting and refining, brazing, sintering of powdered metal components, and pre-sintering of powders for lithium ion battery cells.

        QS2 Coating

          This coating is a silicon carbide/silica composite. It is applied in 2 parts, an organic based pretreatment followed by a mix of silicon carbide and colloidal silica. The coating is cured to provide an adherent coating that covers the outside surface of the heating element. The organic portion burns away during the cure step to leave SiC and SiO2. This coating acts as a physical barrier to chemical attack on the heating elements.

         QS3 Coating

          This coating is a zirconia/silica based coating. When applied to the hot zone, this coating acts as a physical barrier to attack. When applied to the cold ends, the coating prevents the elements from sticking to the furnace refractor
SERVICE LIFE
         All silicon carbide elements increase in resistance during their life in operation, This characteristic of increasing in resistance is called aging. Aging is a function of the following:
            •Furnace temperature
            •Element surface loading in W/cm2
            •Atmosphere surrounding the elements
            •Mode of operation – continuous or intermittent
            •Operating practices and power control methods used
            •Operating and maintenance technique

        As a general guide, QS SIC elements may increase in resistance at a rate of about 5 – 6% per 1000 hours operating continuously in clean air at a temperature of 1400°C ( and at about 3% per 1000 hours use at 1000°C . It should be noted that small changes in operating conditions can alter these rates considerably
INTERCHANGEABILITY

     QS  SIC  are premier grade high performance silicon carbide elements, and we are the only high quality silicon carbide heating elements manufactured in theCHINA. Elements can also be manufactured in special sizes and resistance values to replace elements supplied by other manufacturers in Asia and Europe. It is important to provide the nominal electrical resistance when ordering Sic elements.
EASE OF REPLACEMENT

      SIC element can be replaced while the furnace is at operating temperature. The power to the elements being changed should be shut off, the spring clips and aluminum braid released, and the old SIC removed. The new SIC should be inserted smoothly through the hot furnace with sufficient speed to insure that the aluminum is not melted off the terminal end but not so fast as to cause thermal shock
AVAILABILITY

        SIC  can be shipped  from stock, or two to three weeks after receipt of an order. In an emergency we may be able to produce more quickly.
CUSTOM CONFIGURATIONS

        Special sizes and shapes are available. Cold ends can be different lengths. This, for example, would be applicable for furnaces with arched roofs that require longer cold ends through the roof and shorter through the floor. Another modification is a multiple-temperature hot zone. This, for example, would be helpful to get additional heat energy into the lower, more densely loaded tunnel kiln. While this special modified hot zone may not create a specific temperature differential, it does offer a convenient way to get more or less heat energy.
SUPERIOR PERFORMANCE

         SIC elements  will give you superior performance due to their high density -- approximately 2.52 g/cm3 .or 2.7 g/cm3to2.8 g/cm3 ,This gives the SIC elements very slow aging characteristics and high strength.
Ordering
       The minimum information required when ordering QS SIC elements is as   follows:
        Element type:
        Diameter, mm (ØA):
        Hot zone length, mm(L):
        Overall length, mm  (L):
        Nominal resistance,( Ω):

ELECTRICAL CHARACTERISTICS
      The silicon carbide element  is a linear type resistance heater that converts electrical energy to heat energy.The SIC  hot zone is a self-bonded alpha silicon carbide. The lattice structure or bonds that hold the silicon carbide grains together are formed by recrystallizing the silicon carbide at very high temperatures (>2500C). SIC are manufactured from green silicon carbide, which is classed as an excess electron type semiconductor. The electrical resistance of a SIC is difficult to measure at room temperature due to minor impurities, self heating, and contact resistance. Also the green silicon carbide has a negative resistance temperature characteristic from room temperature to approximately 650ºC. It turns positive at this point and remains so throughout its normal operating temperature range. A typical resistance temperature characteristic curve of a elements is shown . Nominal SIC resistance is measured at the calibrating temperature of 1071C. Nominal resistance values of SIC in ohms per unit of length are shown in Table A,

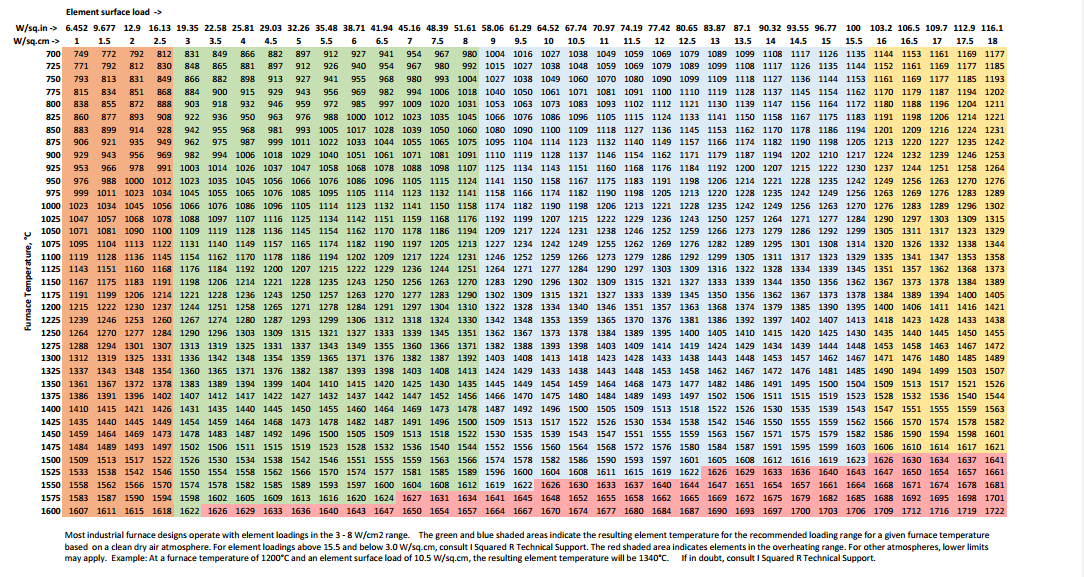

Surface temperature at various watt loadings

       element surface temp(c） and furnace temp（c)

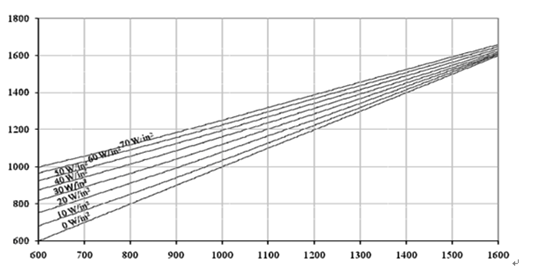

QS Element temperature °C , vs Surface load and Furnace temperature

     Elements are used in a wide variety of furnace applications, from small labora- tory furnaces to large industrial heating processes, in different atmospheres and temperature ranges.

In many applications including: glass, ceramics, electronics and metal industries, and also for re- search and development.

SPECIFICATIONS AND MATCHING
       SIC have a manufactured tolerance of ±20% on the nominal resistance. All SIC are calibrated at least twice prior to shipping to ensure their being within specifications. The calibrated amperage of each Sic elements is marked on the carton and on the right hand end of each sic elements. When installing, arrange sic elements with amperage values as close to each other as available. Longer service life will be obtained when series connected sic elements are matched in resistance. SIC  are shipped as closely matched as possible.
MATCHING SILICON CARBIDE HEATING ELEMENTS
        We are very particular in the matching of the amps supplied in a given shipment to help give you the best matching that we can.The reason for matching is to improve the heating element life and to improve the temperature uniformity in the furnace chamber.

       Your primary concern is for improving heating element life.The reason for having elements that are matched in resistance in a set is to keep the surface temperature of the elements as nearly the same value as possible. If there is a large variation in resistance, there will be a large difference in surface temperature.

       Normally a 10% difference in resistance is acceptable. An all parallel electrical heating element arrangement is preferable to a series arrangement for the higher resistance element will operate at a lower surface temperature for the higher resistance element will be providing less power.

      This also has a self-balancing characteristic. Conversely in an all series arrangement, the highest resistant element will be the highest in temperature. Therefore, matching of elements when connected in series is more important than when connected in parallel.        Before shipping, we always select the closest matched elements from those we have available. We have a chart that we work from. The smaller diameter elements are normally in larger sets than the larger diameter elements This coincides with normal furnace design in that large diameter elements are usually installed in smaller sets.

      We always try to match to a customer’s specifications and will contact the customer should we have trouble meeting his matching specifications. The size of a set is determined by the number of elements connected to a transformer tap switch. If you could control the voltage to each element you need not be concerned about matching.

      Matching of the Sic elements  is done by current rather than by resistance, for it is a more convenient value for us to use. The ampere values used for matching are written in black marker on the end of the element carton and also in white crayon on the cold end of the heating element.

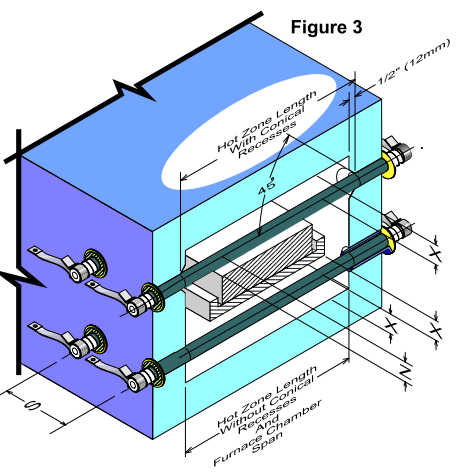

FURNACE HEATING CHAMBER
      The furnace heated chamber dimension, which the SIC spans, can be the same as the hot zone length of the Sic elements  as shown by the SIC under the load in Figure 3. Alternately the furnace heating chamber dimension, which the SIC spans, can be 25mm less than the effective heating length of the SIC.

       In this case there must be a 45 conical recess in the furnace wall as shown in Figure 3 for the SIC above the load. Recommended terminal hole diameters for various refractory walls and SIC sizes are shown in Table B. SIC should not be placed closer than two SIC diameters to each other or one and one half SIC diameters to a wall or other reflecting body. If the SIC  is not able to dissipate heat energy equally in all directions, it may cause local overheating and possible failure

Recommended element Spacing

           X = 2 × element Diameter is the Minimum,

             1.5 × element Diameter is the absolute Minimum and requires a reduced element Surface Watt Loading

           Z = S ÷ 1.41 Minimum for Stationary Loads

           Z = S ÷ 1.73 Minimum for Moving Loads

           S = 2 × element Diameters Minimum

           X - is the distance from the centerline of the element to any other reflecting surface, such as a refractory wall or product

           Z - is the distance from the centerline of the element to a moving or stationary load

           S - is the distance from the centerline of the element to the centerline of an adjacent element

INSTALLING THE ELEMENT

      The float elements are always hung vertically with the bridge down. The elements are pushed up through the roof module from the inside of the furnace. Three ceramic step washers are provided to fit into the roof module and over each cold end. There is a 5.6mm (0.2”) hole in each cold end. Stainless steel pins are inserted into these holes to support the element. Only the two outer holes are used for the support.

RECOMMENDATIONS FOR CHANGING RR or SE ELEMENTS
      1.With the furnace in operation, determine which elements require replacement. This may be accomplished through, visual inspection or by checking the current draw of each element with a clamp-on ammeter.
      2.Turn off the electrical power and lock out the electrical disconnect.
      3.Remove the clamps and the straps from the ends of those elements which require replacement.
      4.Inspect the clamps to be sure that they hold the straps tightly to the element. If the clamp has lost its tension, it should be replaced.
      5.Inspect the strap for fraying and oxidation. If the strap is frayed or has an oxidized powder on it, replace it.
      6. Remove the two halves of the failed element if broken.
      7. Inspect the refractory hole to insure there is no build up or deposition in the opening. If deposits exist, ream the hole or remove them. The hole should be larger than the element diameter (See table B on page 7 of our RR brochure).
       8. If element guide sleeves are used, check them for cracks or build-up of condensation residue that could cause elements to be glued into position. Replace the sleeve if damage or condensation has occurred.
       9. Check the alignment and straightness of the holes through the refractory. Any binding of the element can cause element breakage during heat up.
      10. Slide the new element into the hot furnace quickly enough, so the aluminum at the end is not melted off but not so fast as to cause thermal shock. Avoid hitting the opposite wall with the element. Sometimes an alloy pipe can be used to guide the new element through the heating chamber. The element outside diameter fits inside the alloy pipe inside diameter in this process. Do not force the element into the terminal holes or exert any stress on the element during installation. Page 1
      11. Center the element in the furnace chamber by insuring the same amount of element protrudes from each side of the furnace.
      12. Lightly pack the open space around the element with bulk ceramic fiber. The bulk fiber should only be packed one half to one inch in from the cold face. After packing, the element should be easily rotated and must be free to expand upon heating. Never cement elements in place. Alternatively, use donut shaped washers made from ceramic fiber felt/blanket, with the ID of the washer made to the same diameter as the element. There is enough “give” in the fiber felt/blanket o be able to work the washers along the terminals for a snug fit. Carefully slide the fiber washers over the ends of the elements, and push up against the furnace casing.
      13. Also pack the element inside diameter with bulk ceramic fiber to a depth of one inch, if this has not been done by I Squared R. This will reduce the temperature the straps and clamps will see.
      14. Reconnect the straps and install the clamps on the aluminized ends of the element. Be sure the clamps and straps fit tightly to the  radius of the element making a good electrical connection. Be sure there is slack in the straps, since the elements will expand and grow in length due to heating.
      15. Insure that there is clearance between the clamps and the furnace shell to prevent electrical short circuiting here.
      16. Remove the electrical lock and turn the power back on. Visually inspect the elements for proper operation or check the elements for appropriate current draw using a clamp on ammeter.
       17. Check the terminal connections to insure no arcing is evident.
       18.Turn off the electrical power and lock out the electrical disconnect.
       19.Carefully reinstall all guards or shields without hitting the elements
       20.Remove the electrical lock and turn the power back on again.
       21. Be sure to reset the rotary tap switches to the lowest setting after changing all elements in a furnace zone. This may not be possible if only one or two elements are changed. If rotary tap switches are not available, insure that the elements are operating on the lowest transformer tap to prevent element overloading and premature aging while still being able to maintain the furnace control temperature

POWER SUPPLY
      It is important to install, connect and control the elements in the recommended way, to ensure opti- mum life.
Element connections
      QS SIC elements may be connected in parallel, series or combinations of the  two Parallel connection is ideal, as any small variations in resistance value will tend to balance with use, whereas with series connection, the variation will tend to increase, resulting in a reduced element life
       As QS SIC elements increase in resis- tance fairly slowly however, the effect of any im- balance is small, and up to four elements may be connected in series, providing that they are well matched in resistance value. At furnace temperatures above 1400°C .it is recommended That the number of series connected elements should be limited to  two

       A series-parallel combination is usually an effective compromise, and in this case, the series groups should be connected in parallel. Elements should never be connected with parallel groups connected in series, as failure of one element will result in overloading of the remaining elements in that group

3-phase connections may include star (wye) or delta. Where a star connection is to be used, awire supply is recommended, to ensure that the phase voltages are balanced, irrespective of the phase resistances. If a 3-wire star connection must be used, then the phase resistances must always be closely matched
Matching of resistance value
     It is recommended that any series connected ele- ments be selected within a resistance range of ±5% of each other, and elements connected in parallel may have a wider range of   ±10%.
     If any element fails or is broken after only a short period in use it can usually be replaced with  a new element; preferably one from the higher end of the resistance tolerance (low amp value). If the elements have been in use for a considerable time
however, the entire group should be replaced other- wise an excessive load will fall on either the new or the old elements, resulting in premature failure.
      It is good practice to divide the total number of elements in the furnace into relatively small control groups, to simplify matching at a later date. For example, a furnace fit with 48 elements, will  be far more flexible if the elements are divided into 8 groups of 6 than with 3 groups of 16   elements, and matching of element resistances will be greatly simplified.
      When a group of elements has been replaced, it is essential to ensure that the voltage output of the power supply equipment is reduced to the correct value before switching on, as overloading of ele- ments, even for a very short period, can cause irre- parable damage. The old elements may be retained for later use with others which have been in   use  for a similar period of time. If possible, voltage   and current readings should be taken from each element before removal and the increased resistance value marked on the terminal to assist in matching at a later date.
      It is important to note that the resistance values of elements at room temperature give no  indication of their resistance at operating temperature and resistance measurements should always be taken at a constant temperature above 1000°C
      Different types of heating elements should never be operated in the same electrical circuit, as variations in rates of resistance increase will cause overload- ing of one type or the other depending on the method  of connection
Voltage reserve
      To compensate for the increase in element resistance which occurs with use, a variable voltage power supply is usually provided. The  amount of voltage reserve required will depend upon the elements’ rate of resistance increase and the life expected, but is usually in the order of 50 –100% of the voltage required to give full power with new elements.
       For example, if 125 V is required to give full power with new elements, then a voltage range of 125 – 250 V will be required to give 100% voltage reserve, and a range of 125 – 187.5 V to give 50% reserve.
       Where elements are to be operating for long periods at temperatures of about 1400°C or above, or where the furnace conditions are such that an excessively high rate of resistance increase will occur at a lower temperature, then allowance should be made for 100% voltage reserve. Con- versely, if the element temperature is very low, or the furnace only infrequently used, a voltage reserve of 50% or less may be found   sufficien
Power  supply equipment
       A variable voltage power supply is usually pro- vided to enable the design power to be maintained throughout the life of the elements. The type of equipment used may have an effect on element performance and it is important that the correct selection procedures are adhered to if the best element life is to be obtained. Various types of power supply can be used:
       1.Variable output transformer
       2.Thyristor unit (SCR)
          a.Phase-angle firing
           b.Cycle-proportioning
       3.Combined thyristor (SCR)/transformer system
Direct-on-line connectio
      Generally speaking, tapped transformers provide only on-off control, unless used in combination with thyristors. Although robust, and insensitive to short term overloading, the transformer is considered to be heavy, bulky and relatively expensive
in most cases. Thyristor control offers a far more compact solution, with the option of step less variation of power, and 3-term, accurate tempera- ture control, but will require an over-rated supply, and may cause disturbance in the supply lines. It is not usually practical to provide a voltage reserve of more than 50% using thyristor control alone, and where a large voltage reserve is required, in combi- nation with 3-term control, the best, although most expensive, option is to combine the control benefits of the thyristor, with the large voltage span of a transformer.
      Thyristor control alone is common in low temper- ature furnaces, laboratory furnaces, and other equipment where the rate of change of element resistance is likely to be low.

       For high temperature continuous industrial furnaces, where a large volt- age reserve is required as well as accurate tempera- ture control, then the additional costs of the com- bined transformer/thyristor system can usually be justified in terms of performance
1  Variable output transformer
       Infinitely variable transformers are occasionally used to power small laboratory and experimental units but are usually too expensive for larger furnaces, where multi-tapped transformers with stepped outputs are more economic. The maximum voltage step on a tapped transformer should never exceed 7% of the initial, full power voltage , where W is the furnace design power and R is the network resistance based on the nominal resis- tance of the elements) and the element resistance tolerance must always be taken into account when calculating the maximum secondary current ratingof the transformer
 e.g. if a furnace is to be rated at 5 kW and fit with Kanthal Globar SD elements having a network resistance of 2 Ω (±15%) then the transformer spec- ification might be calculated as  follows:
Nominal full power voltage  =  WR  =   5000 × 2 = 100 V
Voltage steps must not be greater than 7% of 100 V = 7
Minimum network resistance =2 Ω -15% = 1.7 Ω
Maximum secondary current  = 54 A
Minimum voltage required  = 5000 × 1.7  = 92 V

      Assuming that 100% voltage reserve is required then the specification could be as follows:
         Input:  Single-phase, to suit supply
      Output: Variable from 92 V to 197 V in 15  steps of 7 V (= 4 coarse × 4 fine  tappings)
        Rating: 5 kVA  from 92 V upwards   (maximum secondary current 54 A)
        1.Where a tapped transformer is to be used then an allowance should be included in the furnace design power for the reduction in power output, which will occur between tap changes. With a 7% voltage step for example, the power will fall by about 12.5% before the voltage can be adjusted to the next setting.
         2.A few taps below 92 V may be included for lower powers if required.
         3.If an ammeter is to be used, then it should be installed in the primary circuit where the voltage is constant; the current reading will then give a true indication of the power dissipated by the elements, irrespective of the secondary voltage setting
2Thyristor (SCR) unit
          A thyristor is a semi-conductor switching device which can control the average output to the ele- ments by switching the mains supply on and off very rapidly. Each thyristor will conduct in only one direction and for control of a.c. loads the thyristors are installed in pairs, connected in inverse parallel. The thyristors are switched by a series of pulses fed from a suitable driver unit or tempera- ture controller.
         Thyristors can be simple devices, but are often pro- vided with closed loop feedback, to compensate for variations in supply voltage, load characteristics, etc. Typical feedback modes include current control (I2 feedback), voltage control (V2 feedback) and  true power control (VI feedback). In general,  only V2 feedback is suitable for use with silicon carbide elements, although there are some exceptions
          Current control tends to increase the power to the elements as they increase in resistance, and both power and current control can cause serious dam- age to the elements when starting from cold, when the element resistance is high. When presented with this high load resistance, both current and power control are likely to result in the application of maximum voltage to the elements, and if the avail- able voltage is higher than the elements can with- stand, then serious damage may occur. With voltage control, the delivery of power will be  controlled by the resistance/temperature characteristics of the element, starting with a relatively low power, and gradually increasing as the elements heat up.
           The output characteristics of the thyristor are governed by the firing method used and the two principal types are as follows

2.1  Phase-angle firing
       Each thyristor is triggered once in every half cycle of the a.c. supply, conduction ceasing at the    end of the half cycle as the current falls to zero. In this way, the sinusoidal supply waveform is  chopped, resulting in a reduction in the RMS output voltage of the thyristor stack. For control of silicon carbide elements, a manual voltage limit control must be provided to vary the conduction angle of the thyris- tors and thus compensate for resistance increase of the elements.
       Phase-angle fired units may also be fit with a current limiting device, which may protect the thyristors from accidental overload, by preventing the current output from exceeding a pre-set value, irrespective of the voltage setting. This current limit must  not be used to control the power input to the elements, as the power input (= I2R) will gradually rise with increasing element resistance, resulting in progres- sive overloading of the elements, and possible dam- age when starting from  cold.
       As phase-angle fired thyristors give smooth, step less control of the applied voltage, they are ideally suited for use with silicon carbide elements. How- ever, they can cause both radio frequency interfer- ence and supply waveform distortion, and consid- eration should be given to these factors when se- lecting the system to be used. The use of phase- angle firing is discouraged in many countries, or severely limited by local regulations
        As there is no current flow for part of the supply cycle, phase-angle controlled loads will give rise to an apparently poor power factor, even with  a purely resistive load, and this can lead to problems on large installations, especially if the firing   angle  is small. Generally, the starting voltage with new elements should not be less than 60% of the supply voltage, to minimize this effect.
      Supply cables must be rated at the RMS current drawn by the elements (= power ÷ thyristor output voltage and not power ÷ supply voltage). This means that the power supply will be rated higher than the furnace design power, and the more voltage reserve is provided, the higher will be the required over-rating.
        In 3-phase installations, generation of third har- monics will give rise to cumulative distortion   of  the supply waveform and may result in excessively high neutral currents of up to twice the line current in 3-phase, 4-wire, star-connected loads. Neutral cables must be adequately rated to carry  this  excess current. Although 3-wire star  connection can be used to eliminate this problem, this can result in voltage imbalances between phases, espe- cially where elements are nor perfectly matched in resistance.
         To minimize supply distortion in large installations, the use of a 6-wire, open-delta arrangement is recommended. The thyristors are required to carry

only the phase current and not the line current as would be required in a closed delta installation, leading to a reduction in cost, and phases can be controlled independently, leading to more flexibil- ity  of control.
       Calculation of the voltage output and current rat- ing of phase-angle fired thyristor units is carried out in the same way as for a transformer, taking account of the element resistance tolerance when calculating the maximum current  drawn
Power monitoring – phase-angle
        Most voltmeters and ammeters will not indicate a true RMS reading from phase-angle   controlled
loads, and great care must be taken to ensure that the elements are not inadvertently overloaded.
Some of the digital meters currently available will respond accurately to non-sinusoidal waveforms, but the manufacturer should be consulted to ensure that a suitable instrument is supplied. True RMS, hall-effect meters, with a crest factor of 7 or above, is recommended for an accurate response

2.2  fast-cycle firing
      The thyristors are triggered at the beginning of a mains cycle and remain conductive for one  ormore complete cycles before being switched off for one or more cycles. This operation is continuously repeated, thus limiting the effective input to the elements. A manual control must be provided to vary the on/off ratio, and thus compensate for the gradual resistance increase of the elements.
        Although the average power input to the elements may be within the normal recommended limits for start-up, temperature and atmosphere, each full cycle of the full mains voltage may cause loadings of several times this value to occur, and this can result in increased rates of resistance increase and premature, if not immediate, element failure
this reason, it is necessary to connect the elements in such a way that the element loading during full cycles of the supply voltage does not exceed15 W/cm2
         To minimize the effect of the ‘on’ burst, the time base of the firing cycle must be as short as possible and preferably less than 30 cycles of a 50 Hz supply (i.e. 50% power = 15 cycles ‘on’ + 15 cycles ‘off’
Slow-cycle thyristors generally have cycle times of several seconds and are not suitable for direct  control of silicon carbide elements.              They may be used on the secondary side of tapped transformers how- ever, in place of conventional electro-mechanical contactors
          The optimum type of burst-fired thyristor for use with silicon carbide elements is the single-cycle burst-firing type, where the required output is always reached over the minimum possible number of complete cycles (i.e. 50% power = 1 cycle ‘on’ + 1  cycle ‘off’)
         The required voltage rating for the thyristors will be the same or higher than the supply voltage, but the current rating of the unit must be determined by dividing the RMS supply voltage by the mini- mum network resistance

      The rating of the thyristor will therefore be  much higher than that of an equivalent phase-angle fired unit

      To calculate the required output from the thyris- tors, the power at the supply voltage must be cal- culated, and the on/off ratio of the thyristor limited to whatever percentage will provide the required design power.

     Resistive loads controlled by fast-cycle thyristors have a unity power factor and, as only full mains cycles are delivered to the load, there is no cumula- tive distortion of the mains supply. With heavy loads however, voltage drop may cause flickering lights and also affect sensitive equipment
Power  monitoring – fast-cycle
      It is difficult to obtain voltmeters and ammeters which will respond accurately to fast-cycle con- trolled loads, and as most meters will indicate a reading considerably less than the actual thyristor output, great care must be taken to ensure that the elements are not inadvertently overloaded. The required output settings can be calculated, as above, based on the known resistance of the ele- ments. If there is any doubt about the required setting, then the control should be set initially  at a very low value and adjusted as required until sufficient power is available to raise the furnace to temperature. The control should be left at this setting until, due to resistance increase of the ele- ments, insufficient power is available to maintain the furnace at temperature (or reach temperature if the furnace is in intermittent use). The control setting should then be increased slightly until suf- ficient power is again available
3Transformer + thyristor (SCR)
       Due to the limitations imposed on the use of thyris- tor control, outlined in (A) and (B) it is sometimes not possible to provide an  adequate voltage reserve, and it may be necessary to adopt a combined thyris- tor/tapped transformer power supply to ensure
an adequate element life. Thyristors can be fit on either the primary or secondary side of the transformer, although precautions are especially required for primary connection.

      The transformers can be fit with only 2 or 3 tappings in most  cases, as the intermediate steps can be accommodated by the thyristors. If the use of a combined system is being considered, then both transformer and thyristor manufacturers should be informed at the design stage, to ensure compatibility of the equip- ment supplied.QS can provide suggestions for the design of the equipment, on receipt of  the element details, required power and temperature, and the local supply  voltage
4Direct-on-line
       Networks of elements may be connected directly to the mains voltage providing that the network resis- tance is sufficiently high to prevent element over- loading. The network should be designed so  that the initial power output is higher than the furnace rating to provide a power reserve and  compen-  sate for element resistance increase. Although the capital cost of a variable voltage supply is saved by this method, only a minimal power reserve can be provided, and in addition, a larger number of ele- ments may be required in the furnace to dissipate the initial excess power.
       It may be possible to gain an extra power  reserve by modifying the element connections after the elements have aged (e.g. from 2 parallel branches of 3 elements in series to 3 parallel branches of 2 elements in series; or from 2 elements in series con- nected in delta to 2 elements in parallel connected in star). Because of its inherent drawbacks, direct- on-line connection is normally limited to relatively low temperature applications (under 1100°C (2010°F)) or infrequently used cyclic furnaces up to  1300°C (2370°F)
Start up procedure
       Rapid heating is detrimental to all ceramic materi- als, and  although  elements  and multi- leg elements are particularly resistant to thermal shock, care must be taken when heating up from cold to limit the applied voltage, and hence the element heating rate.

     The test voltage marked on every element must never be exceeded, but in general, it will be beneficial to limit the applied voltage to a lower value, calculated from the element design power, and the nominal element resistance: V=  WR Where W is the design power of the element in watts, and R is the nominal element resistance

MAINTENANCE
HEATING ELEMENT MAINTENANCE RECORD
     Furnace ID: _______________________

     Temperature:_______________________

     Atmosphere: _______________________

     Number of Elements in Furnace ________

     Number of Spares ___________________

SIC heating element order information:

    Type: ---- Outside Diameter: ___________________ Heated Length: _____-______________ Overall Length: ___________________

     Nominal Resistance when new:_________Ω

     Date Element Location Amps written On element Measured Voltage E Measured Amperage I Computed Resistance E/I Computed Watts E x I Notes Sketch of heating element layout
FACTORS THAT AFFECT STARBAR SERVICE LIFE
      Silicon Carbide heating elements increase in resistance during their service life. The rate at which aging occurs is affected by many factors such as element watt loading, operating temperature, atmosphere, mode of operation--continuous or intermittent and power control methods. Element life depends on many factors. The elements can last several years if operated in a favorable atmosphere at a favorable watt loading.
       Watt Loading and OperatingTemperature

       A heating element with a higher watt loading will operate hotter, as shown on the adjacent chart. This higher temperature is directly related to the rate at which the element increases in resistance. For optimum element life, the lowest possible watt loading should be considered, in the range of 20 to 50 watts per square inch (3-8 watts per square centimeter).

      Atmosphere

       In clean, dry air atmosphere SG, SGR and one-piece sic elements can be operated at furnace control temperatures up to 1600ºC. The maximum element temperature is 1625ºC.The three-piece DH or U type sic elements  are limited to 1425ºC. In inert atmospheres of argon or helium elements may be operated to 1700ºC.)For atmospheres containing water vapor, alkali metal vapors, flux vapors or oxygen enrichment, we recommend   QS1 infusion glaze coated elements or elements of special  type  Please contact us for recommendations.

       In reducing atmospheres the maximum operating temperature is 1370ºC. There is a protective coating of silicon dioxide on the silicon carbide. Hydrogen reduces this coating and causes the sic elements  to deteriorate. Very dry or very wet hydrogen is detrimental to long service life. Nitrogen atmosphere applications are limited to 1370ºC and 30 watts per square inch (5 watts per square centimeter) maximum surface watt loading. Too high of a surface temperature will result in a silicon nitride reaction. A thermally insulative layer forms around the elements resulting in very high surface temperatures which damage the sic elements.
       Mode of Operation

       Sic heating elements can be used in both continuous and intermittent operations. For maximum service life above 1300ºC. continuous operation is recommended. The reason for this is that a new element is essentially 100% pure silicon carbide with very little silicon oxide. As it is used, the silicon carbide oxidizes and forms more silicon oxide and silicon dioxide. This is what causes the element to increase in resistance over its life. The chart entitled THERMAL EXPANSION OF DIFFERENT SILICA MATERIALS show that these various forms of silica - quartz, cristobalite and tridymite have considerable size changes as they go through these  phases. When the silicon dioxide in the element is cooled or cycled, it goes through several phase transformations. The high-low quartz transformation at 570ºC. involves a substantial volumetric change, which can lead to the fracture of bodies containing large amounts of quartz. As the sic elements  go through these temperature ranges, the expansion and contracting of the silica can fracture the silicon carbide lattice structure which increases the electrical resistance and can cause element failure. 571ºC temperature is theoretical and the exact element temperature can vary somewhat. For these reasons, we recommend a minimum idling temperature of 704ºC, to remain well above this inversion temperature. There are those customers who feel it is more economical to conserve on energy and suffer a shorter element life. There are other customers who prefer the longer element life at the expense of the energy used during idling. Since each application is different, the choice remains with the customer.

       Power Supply –

       The resistance of sic elements  increases gradually during their useful life. Therefore, some means of maintaining the power input to the furnace at a level sufficiently high to maintain the desired temperature, is required. Historically this involved the use of mechanical contactors and multiple tap transformers with up to 16 taps to be able to adjust the voltage upwards in steps, to maintain the desired power output as the elements aged. In more recent times, the use of SCR’s (silicon controlled rectifiers, also known as thyristors) have become more popular as they are less bulky, and enable very precise control of the voltage and power input to the heating elements. To provide a large voltage reserve to enable maximum life of the element elements when designing higher temperature and more industrial furnaces, the use of a combination of step down transformers with only 3 or 4 output tappings in combination with SCRs, is the most common system today. Sic elements  can be used directly on the line (fixed voltages) at temperatures up to 1300ºC. To compensate for the reduced output as the sic elements  gradually age or increase in resistance, the furnace or kiln is typically initially overpowered by 25% to 50%. This type of arrangement has proven very satisfactory in many applications
TROUBLE SHOOTING
       SiC heating element life is limited due to several reasons, but the major reason for failure is rarely due to faulty material or workmanship. The most common reasons for element failure, which we have seen have been due to:
       Mechanical stress

       Terminal holes should be aligned and straight in the refractory wall. Any binding of the Starbar can cause breakage during heat-up or operation due to expansion or movement of the furnace walls. If the elements are tight in the terminal holes or something bumps or jars the elements, they will break. Please make sure the elements can be moved north and south and east and west about 4-6mm (1/8"-3/8") with a slight force such as can be applied with a thumb and a finger pushing on a pencil. This test should be done both at room temperature and at maximum furnace operating temperature. Contact straps should be long enough so that no stresses are transferred to the elements.
        Arcing

        Arcing occurs when the element is powered. If an element is not free to radiate freely in all directions, the section too close to a wall will overheat, arc and fail.
       Careless handling

        Handling of element packages by the carriers while in transit. Handling of elements by the customer after being removed from the package.  Chemical Attack -- Silicon carbide heating elements should be operated in a clean environment. Glass deposits, for example, can cause mechanical breaks. The differences in coefficients of thermal expansion causes mechanical stresses in the element structure and breakage to occur. If possible, keep excessive moisture, methane and hydrocarbon vapors out of the high-temperature zone of the furnace, where the elements are located. If moisture is unavoidable, and for more aggressive furnace atmospheres, we recommend LMA infusion glazed coated elements. Please contact us if you have any questions.
      Overheating

       Center the element in the chamber so no portion of the heating section is in the refractory wall. This can be done by measuring the cold end length sticking out of the furnace shell and make sure they are both equal





CHECKLIST OF INFORMATION REQUIRED TO TROUBLESHOOT SILICON CARBIDE HEATING ELEMENT PROBLEMS
                                              Date:______________

Customer data
Customer Name:_____________         QS Contact:_______________
Contact Name:_____________      Contact email:_______________
     Address:______________     Contact Phone:_______________
Product manufactured/industry:_____________
Furnace Data
Furnace builder:_________________       Furnace type:__________________
Production capacity, lb/h:__________________
Production Process:________________   Furnace Power Rating,Kw:______________
Furnace Temperature, ℃:________________         Firing Cycle:__________________
Number of Zones_________________      Time to temperature:______________
Refractory/insulation thickness:_____________    Refractory Insulation Composition:___
Diameters of holes in refractory:_____________    Ceramic Terminal Tube used, size:____
                     Width            Height           Length

Chamber/Zone dimension:_____________________________________________________
Furnace atmosphere:___________________    Is atmosphere
Hat is the atmosphere dew point?_____________   Contained in muffle:_______________
What volatiles are given off from the load during heating?____________________________
                   Is there any steam?____________________________
Electrical data:
Electrical orientation (Wye/Delta/Single-Phase):______     SCR Rating:_______________
Transformer Voltage taps:_________________   SCR Manufacturer:_________
 Transformer Rating:__________________ Method of Control SCR:_______
Transformer Manufacturer:__________________ SSR or Contactor):___________
If SCR, what firing method is employed?(phase-angle, zero-switching and type i.e  single cycle.,
Slow cycle and time base , if  known):_______________________________________________

                       Volt(AC)            Phase           Hz
Main Line Power__________________     ____________     _______
Element data:

Type of element & part number:__________________  Number of elements:_______________
Element loading:_________________ Power per element, KW:_______________
Element temperature:__________________    Hot zone Length:_________________
Element dimension:__________________    Cold End Length:________________
Element Spacing(Centerline to Centerline)_________Element Spacing from chamber walls:____


Connections and installation
What orientation are the elements installed in?
(Horizontal ,Vertical ,at an Angle, etc.)___________________________________
    How are the elements supported?___________________________________
Are terminal tubes/lead-in sleeves being used?____________________________________
Are the terminal holes in line with each other from one
Side of the furnace to the other ?(where application)____________________________________
Are the terminal holes free of debris?(any signs of
         Condensates in the holes? ___________________________________
Are the elements being packed around with fiber at the
Ends where they pass through the refractories?)____________________________________
Are the elements still able to move freely in both linear
And radial directions(important for thermal
           Expansion/contraction)____________________________________
Is there sufficient stack in the length of the aluminum
Straps so as to not transfer stress to the elements?____________________________________
Are there any signs of residues on the element cold
                          Ends?___________________________________
Do you know/what do you think the residues are?___________________________________ Are the elements being installed in well matched groups?_________________________________
(if unclear, we can explain and help)__________________________________
Are new and old elements being installed in the same
             Connection group?__________________________________
Have the transformer trapping and/or SCR outputs been
Adjusted when replacing spent elements with new ones?_________________________________
Are the aluminum braids showing signs or oxidation
               Arcing or heating up?__________________________________
Are the connection clamps loose on the ends of the elements?_____________________________
How are the elements connected in each control group?
(Please describe and/or send a sketch or connection schematic)__________________________

Element radiant protection Tube data(where applicable)
  Tube material_________________  Tube dimensions(mm):________________
Type(Straight ,U,W,Inner)________________      Tube length(mm):________________
Tue orientation (Hor./Ver.)__________________    Tube loading, W/cm2:______________
Number of tube:__________________   Net power per tube,Kw:______________
TIPS FOR MAXIMUM PERFORMANCE
      1. Start-up -- If a transformer is used, apply minimum voltage during start up. This is usually 70%-80% of full load voltage. Any silicon carbide element may be weakened or fractured by heat shock if excessive voltage is applied in bringing the furnace up to temperature too rapidly.
      2. Replacement -- Avoid mixing new elements with old ones. Reduce the voltage to the lowest value when replacements are made. Be sure to turn off and lock out power before changing elements. Never overload elements by applying an excessive voltage to get the furnace up to operating temperature in a hurry. If the broken element is in a series connection, it is usually necessary to replace all the elements connected in the series circuit. Elements in series must be matched closely. If an element has broken after the elements in the group have increased more than 10% in resistance, the entire group of elements should be replaced. If a used element of similar resistance (one which has increased in resistance approximately the same amount as the group) is available, then it could be used as a suitable replacement
     .3. Watt Loading -- Don't exceed the recommended watt loadings or temperatures shown in the chart below
CALIBRATION PROCEDURE
     Our heating elements are calibrated in open air by applying a voltage through them that will cause them to dissipate approximately 15.5 watts/cm2 (100 watts/in2 ). The sic heating elements are calibrated in amperes rather than ohms, for it is a more convenient unit to use.

      Experience shows that a sic element when being calibrated in open air at a loading of 15.5 watts/sq. cm (100 watts/sq. inch) will come to a surface temperature of 1073ºC (1960ºF) in anywhere from three to eight minutes, depending upon the size of the Sic element. Then, current will drop slightly and another two or three minutes is required before the element becomes stable at a temperature of approximately 1073ºC (1960ºF).

      If the element  that are calibrated in free air are placed in an enclosure or in a semi-enclosure backed by a reflector, the ambient temperature will rise above that of the surrounding room with the result that the resistance of the element will be affected. It is possible to check the ampere rating of an element while it is at temperature in the furnace.

      A clamp-on ammeter is required and readings are taken by clamping around the aluminum braided terminal strap. The value is a comparative figure which can be used to relate other elements in the furnace or other elements measured with the same method. To compute the resistance, measure the voltage drop across each element, then divide the voltage by the current.

     This will give you the resistance in ohms of the element. It is possible to calibrate used elements on a higher voltage than was originally used, the advantage being a higher voltage will make it easier to detect any unevenness in resistance or to detect any defects or nonuniformities that might have developed during the operation of the elements. If used elements are calibrated on the same voltage as new elements, the elements will not have the same surface temperature because they have increased in resistance, but if the elements are matched in this manner they will still be very close to being matched at a higher voltage. If you elect to calibrate used elements at a higher voltage, the simplest way to select a voltage for recalibration is to multiply the initial nominal resistance of the element by the estimate of the increase in resistance. If you had an element that had doubled in resistance multiply the nominal resistance by two.

       If the element has tripled in resistance, multiply the nominal resistance by three. The recalibration voltage can be determined by using the equation E=√WR. Where W equals the surface area of the element (square centimeters or square inches) times 15.5 (watt/cm2 ) or 100 (watts/in2 ) and R is the used element resistance. The crayoned markings on the element indicate the calibration amperage, month and year the Sic heating elements was manufactured.

       Holding the Starbar so that the markings are right side up and reading from left to right, the first letter indicates the month. The letter A through L appear in this space (A is for January, B for February, etc.). The second is a number 0 through 9. This is the year the sic heating elements was manufactured . The next mark on the sic heating elements  would appear near the other end and will be the calibrated amperage.
CALIBRATION PROCEDURE
